SCALAR 36: S/Y SERENDIPITY
Callsign: SE 4828
MMSI: 265705840
Built: 1992, # 118 as s/y NIRO PE III, for Gerd "Niro" Petersen. German flag
Boatyard: Henningsen & Steckmest in Schlei / Kappeln, Deutschland
Model: Scalar 36: no 18 of total 24.
Length: 11,0 m
Breadth: 3,40 m
Draft: 1,80 m
Mast: 14,5 m
Boom: 4,45
Airdraft max including antennas 17 m
Keel-targa: 3,95 m
Deplacement: 9,5 ton
Sail Surface: 57 m2
Engine:
Motor: MTU/Schwarting, Marine Motoren GmbH und CO KG
am Nordkreutz 36, 2902 Rastede
Motor Type: 4R 058 AZ 61
Base motor: OM 601 Mercedes
Effect 47Kw/63 bhp at 3000 revs
Motor nr: 601 900 000 142067
Gearbox: ZF Hurth, HBW 250 3R. Nr 18.26420. Oil: 0,75 l ATF Dexron III F/G
Generator Bosch 120 469 744 894 N1 - 14 V 36/80A Belt:
Bowthruster: Vetus BOW 5512D 5,5 Hp
Cruise speed 6 knots at 1800 revs.
Fuel consumption: 2,1 l/hrs
Operation range: 500 M
Filter: Oil MB nr A 601 180 01 09
Fuelfilter: Mahle KC63/1D
Pre fuel filter: Racor R 26S = 2 micron
Air filter: MB 601 094.04 04 or Mahle LX 95
Impeller: Johnson MC97 09-1028BT-1
Masthead rig
3 blade fixed propeller, Right handed
Tanks:
Water: 250 l
Diesel: 200 l Hotwater: 40 l
Septitank 40l with deck coupling outlet
Electricity/Batteries:
- House: 3 pcs Victron Gel @ 110 Ah =330 Ah
- Start: Sonnenschein Gel 90 Ah
- Bowthruster: Tudor 75 Ah
Solarpanel 1: Sunbeam 100 Watt mounted on aftpole
Solarpanel 2: Sunbeam 100 Watt mounted on aftpole
Solarpanel 3: Sunbeam 60 Watt flush on deck
Solarpanel 4: Solarpanel 40 Watt for Bowthruster only
Shore power connection fore and aft
Philippi charger 230V for both battery system
Ctek M100 charger for Bowthruster battery
CTEK 250 Dual S charger for house and start battery
Mastervolt SCM25 MPPT solar charge/regulator
Solar regulator Photos Cml 10-2.2 for bowtruster battery
Victron BMV 602 Ampere/energy monitor
Gas:
4 aluminium bottles a 11 kg
Truma Gasfernschalter
Primus gas leakage indicator
Copper pipes
Construction:
Hull: Glasfiber 15 mm
Interior: Khaya Mahogany, oak and teak
Deck: Vacuum 14 mm Teak on 8 mm Marineplywood in mahogany veneer
4 pcs scupper with outlet under wl
Keel with 500 kg lead extra
Wheelsteering with stainless shafts and gear. Wheel 820 mm diam and 30 mm pipe.
Winches:
2 pcs Andersen 56
2 pcs Andersen 40
4 pcs Andersen 28
1 pcs Andersen 16
1 pcs Andersen Linetender for mainmast rollsystem
Anchor:
2 pcs Stainless/Niro welded CQR anchor 18 kg fore 11 kg aft with 50 resp. 40 m stainless 8 mm schackles chain breakload 3500 kg
Anchor winsches:
2 pcs Lofrans Tigres 1000W 12 V. 0,5 l Gearbox oil SAE 90-130
Electric controlled from fore and aft with handheld device
Also controlled from steering panel
Rigging:
Mast is 1,5 m higher than standard
Boom is 0,45 m longer than standard
Fixed Rig : 2x5 pcs vant with 8 mm Bridon Dyform 1x19 with 6150 kg break load, (30% more than standard wires)
In-mast-furling: Reckmann silverelox 14,42 m, Boom Reckman silvereloxe 4,45 m
Furling: Harken, Aftstay: Barbarossa 500,
ROD: Easykick with new Sodemann gasspring 2500 Newton
Spinnakerboom Selden 6 m telescope
Gyb Easy
Sail: Boding main roll triaxial hybrid poly and Dynema. 26 m2. Boding furling genua 48m2, same material. 2016!
Doyle, roll main 26 m2 rollgenua 48 m2 rolljib 32 m2, Blitzer 115 m2, 1992
Interior
Heater: Trumatic gas, Gasstove with oven and Trumatic remote shutdown.
1 Henderson Whale gusher bilgepump
1 Rule 1100 gph electric and automatic bilgepump
Fridge: Isotherm 3201 ASU
Stove: Waeco 2 flames gas with oven
Navigation/Communication:
Raymarine: ST 60 Wind
Raymarine: ST 60 Echosounder
Raymarine: ST 60 Log
Raymarine: A50+ GPS Plotter
Nexus Silva GPS Repeater
Garmin C60 GPS
AIS: CTRX Graphene+ WiFi including sep gps
RADAR: Furuno WiFi DRS4W
VHF: ICOM IC M411 with sep GPS Evermore antenna
Walkie Talkie: Icom M1 and Icom M25
Autopilot: TMQ AP 47, Robertson Hydraulic pump
Navcomputer: Fit-pc4 with Ge-chic monitor
Nav software: SeaClear special vectorized version and Open CPR.
Charts: CM93 and many more
Ipad with SeaPilot and Marine radar
Televes Omnidirectional Antenna for TV and radio
All in all: 7 GPS receivers...... backup? ...yep!
Safety:
Liferaft: Seago 4 persons
Lifevests 4 pcs Spinloc
Manoverboard lifecollar Secumar with light
Rockets, flares and smoke signals, many!!
Various:
Pulpit / pushpit and stanchions: 30 mm Edelstahl from Niro Petersen
Canvas housing and harbour covers from Kapell & Annat 2018
Radar pole in aluminium 80 mm from NOA, Connections RAM Mounts
Tender: Zodiac 2,85 m Yachtline inflatable raft
Honda 2,3 hp fourstroke outboard engine
"Dingy Rings" (like davit-function)
Brompton minibike and one Dahon minibike, Bobyak cycle carriage for doggy
Handicap Lys: unknown but approxim. 1.08
Whisky: assorted
Beer : oh yeah keelcool
.jpg)
.jpg)
No doublebunk!!
Split lateralplan
GA drawing
Massive teak and mahogany

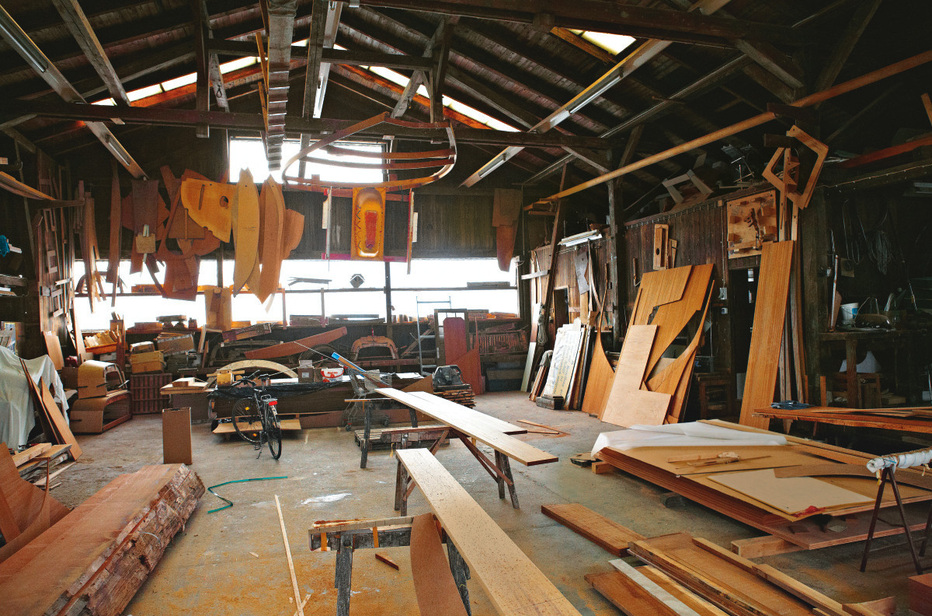

Workshop in Schlei
Original picture from 1992 when caulking deck
Original picture from 1992
The hull just laminated 1992
From shipyard
